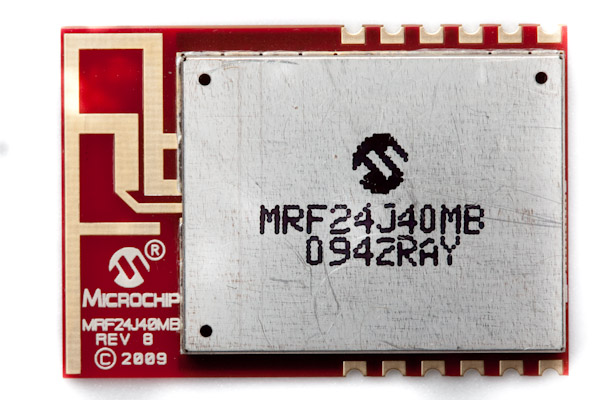

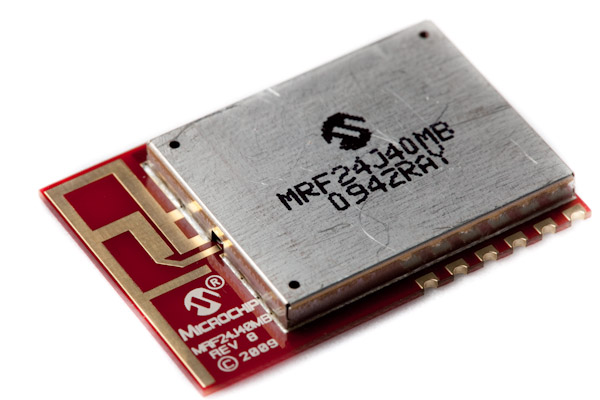

MRF24J40MB 802.15.4 transceiver



Description
Based on the MRF24J40 chip with some bonus power amp circuitry added, this module gives you everything you need to start immediate work on developing IEEE 802.15.4 (WPAN) with a bit extra power for longer range. WPAN makes it very easy to communicate, providing addressing, automatic retry and most importantly, collision detection and avoidance. The result is a very robust, high speed data connection. It’s a great platform to start experimenting with mesh networks as well - in fact, this module can be used as the PHY/MAC layers of a full Zigbee stack if you wish.
Note that this module has the capability of putting out too much power to be used under regulatory standards. Please see the datasheets and make sure you adjust your code to suit your country.
Connector pins are 2.54mm (0.1in) breakout spaced – so you can solder breakaway header pins to use with jumper wires.
Of course, we provide drivers and full source to access the module to make it easy for you to get started.
Module: WRL-1002
Description: MRF24J40MB IEEE 802.15.4 compliant transceiver
Datarate: 250kbps
Dimensions: 22.9mm x 33.0mm (0.9in x 1.3in)
Range: Up to 1.2km (4,000ft)
Interface: SPI
Current consumption: 25mA (Rx), 130mA (Tx), 5uA (Sleep)
Operating Voltage: 2.4V – 3.6V (typically 3.3V)
Operating Frequency: ISM Band 2.405-2.475 GHz
Sensitivity: 102dBm (-23dBm maximum input level)
Output power: Up to +20dBm with 56dB range
