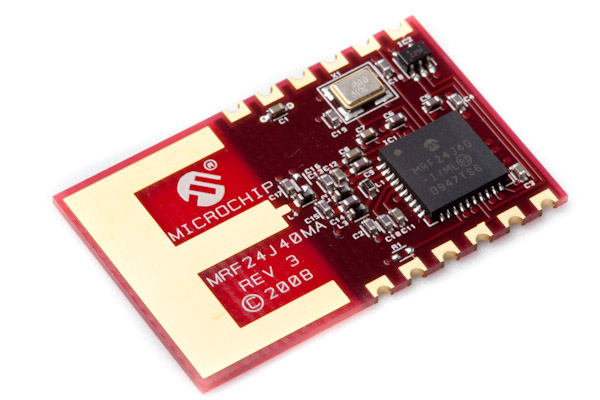

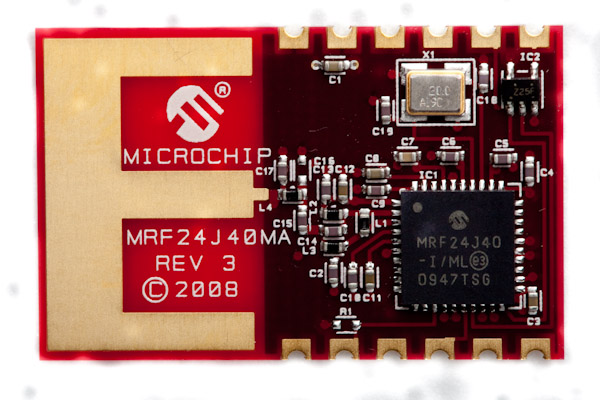

MRF24J40MA 802.15.4 transceiver
MRF24J40MA 802.15.4 transceiver
Description

Based on the MRF24J40 chip, this module gives you everything you need to start immediate work on developing IEEE 802.15.4 (WPAN). WPAN makes it very easy to communicate, providing addressing, automatic retry and most importantly, collision detection and avoidance. The result is a very robust, high speed data connection. It's a great platform to start experimenting with mesh networks as well - in fact, this module can be used as the PHY/MAC layers of a full Zigbee stack if you wish.


Connector pins are 2.54mm (0.1in) breakout spaced so you can solder breakaway header pins to use with jumper wires.
Of course, we provide drivers and full source to access the module to make it easy for you to get started.


Specification
Module: WRL-1001
Datasheets: WRL-1001MRF24J40
Description: MRF24J40MA IEEE 802.15.4 compliant transceiver
Datarate: 250kbps
Dimensions: 17.8mm x 27.9mm (0.7in x 1.1in)
Range: Up to 125m (400ft)
Interface: SPI
Current consumption: 19mA (Rx), 23mA (Tx), 2uA (Sleep), 0mA (Unpowered)
Operating Voltage: 2.4V - 3.6V (typically 3.3V)
Operating frequency: 2.405 - 2.48 GHz
Sensitivity: -94dBm (+5dBm maximum input level)
Output power: Up to +0dBm with 36 dB power control range
