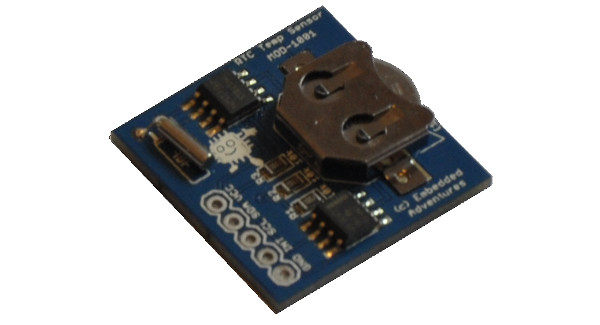

This is simple module to give you access to the temperature sensor and Real Time Clock (RTC) as used in some of our other modules.
Now fully surface mount and pre-assembled.
| Module |
|
MOD-1001 v3 |
| Description |
|
RTC and Temp Sensor Module |
| Hackability |
|
100% (full datasheet, schematics, source code provided; see the rtc_temp_sensor_module demo project in the latest PicPack library) |
| Temperature sensor |
|
TI TMP75 |
| Real Time Clock |
|
ST M41T81S |
| Datasheet |
|
MOD-1001_hw_v3.pdf |
Schematic
Price £8.95
|
